Additional Images
K-711

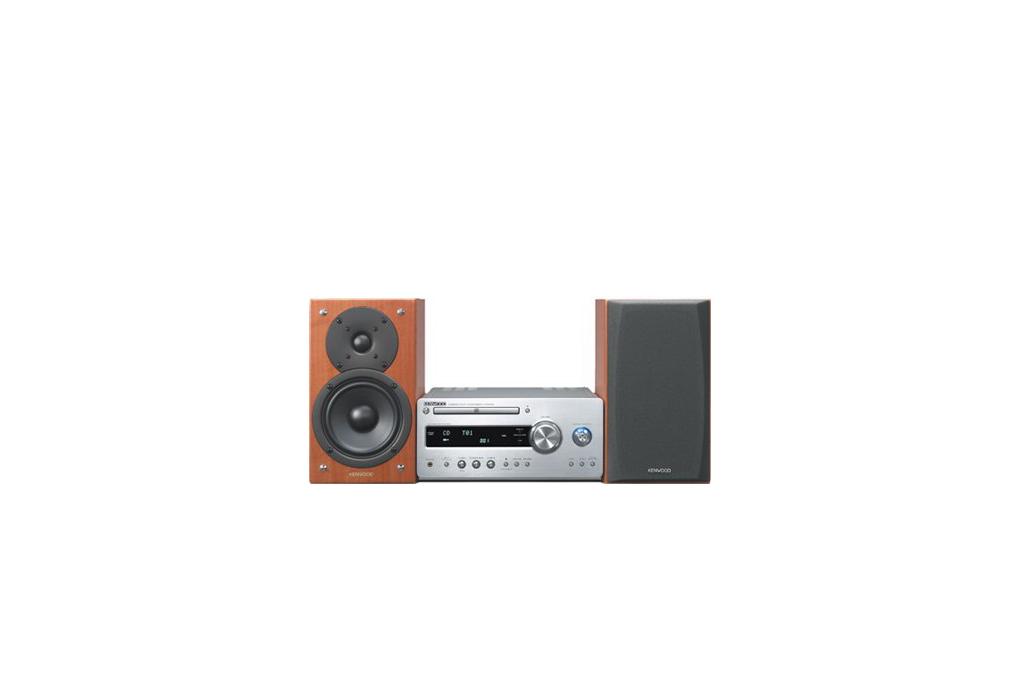

Compact HiFi System
Key Features
| High-precision fully digital preamp and discrete 3-stage differential power amp for realistic reproduction of audio data |
| CD player section for entertainment with a wide range of music sources |
| Supreme EX brings to life beautiful music from various music sources |
| AUTO ROOM EQ Modifying Function |
R-K711-S
Key Features
| MP3, WMA, AAC |
| Full-Digital controlled Pre-playback functionamplifier process |
| Kenwood Auto Room EQ Technology |
| Wide range playback with Supreme EX |
General Features
| Auto Room EQ | Yes |
| Room EQ Mode | Normal / Wide / Night / Live / Vocal |
| D/A Converter | 24-Bit 96/48kHz Wolfson |
| Supreme EX | Yes |
| Parametric Equalizer | Yes |
| Tone Control | Yes, with Turnover Frequency Setting |
| D-Bass | Yes (0~10) |
| Remote Control | Standard Remote |
Amplifier Features
| Maximum Stereo Output Power | 2 x 30 Watt |
| Digital Pre Amplifier | Yes |
| ∑DSP | 28-bit |
| Advanced Ground Line | Yes |
Tuner Features
| Tuner (AM/FM) | Yes |
| Radio Data System | Yes |
| Program Type (PTY) | Yes |
| Number of Presets (DAB) | 40 |
CD Features
| CD DA / CD-R/RW | Yes |
| MP3 | Yes |
| WMA | Yes |
| AAC | Yes |
| CD Text | Yes |
| Program Playback | Yes |
| Repeat Playback | Track, Program, All |
| Random Playback | Yes |
Digital Inputs/Outputs
| Optical Audio Input/Output | 1 / - |
Analogue Inputs/Outputs
| RCA Audio/Video Inputs | 3 Audio |
| RCA Audio/Video Outputs | 1 Audio |
| Phono Input (MM) | Yes |
| Pre-outputs | Subwoofer |
| Screw-type Speaker Terminals | Yes |
| Headphone Jack (3.5 mm) | Yes |
| D.A.P. Link Terminal | analogue 3.5 mm |
| 75 Ohm FM Antenna Connector | Yes |
| AM Antenna Connector | Yes |
Audio Specifications
| Effective Output Power | 2 x 30 Watt (1kHz, THD 10%, 6Ω) |
| Signal/Noise Ratio | 97dB |
| Total Harmonic Distortion | 0.005% (1kHz, 15W, 6Ω) |
| D-Bass Music Mode | +16dB (40Hz, Vol.16) |
| Equalizer Frequencies | 63, 160, 400, 1000, 2500, 6300, 16000 |
| Equalizer Variable Range | ±8dB |
| Bass (Turnover 100Hz / 150Hz / 200Hz) | ±3.1 / 5.1 / 5.7dB (at 100Hz) |
| Treble (Turnover 5kHz / 7kHz / 10kHz) | ±5.7 / 5.1 / 3.1dB (at 10kHz) |
| Input Sensitivity/Impedance: Line | 400mV / 30kΩ |
| Input Sensitivity/Impedance: Phono | 5.5mV / 31kΩ |
| Output Level/Impedance: Subwoofer Pre-Out | 2V / 620kΩ |
Tuner Specifications
| FM Tuning Frequency Range | 87.5 ~ 108MHz |
| AM Tuning Frequency Range | 531 ~ 1602kHz |
CD Player Specifications
| Type | Semiconductor laser |
| Oversampling | 128fs (11289.6kHz) |
| D/A Conversion | 1-bit |
Power Specifications
| Power Consumption | 70 Watt |
| Stand-by Power Consumption | 0.285 Watt |
Dimensions & Weight
| Dimensions (WxHxD) | 270 x 126 x 369 mm |
| Weight (Net) | 5.6kg |
LS-K711-S
Key Features
| New developed soft dome tweeter for wide range, 45 kHz playback |
| 2-way 2 Speaker System |
| 21mm Thick MDF Baffle |
| High Quality Crossover Network Circuit |
| Noise reduction woofer frame |
Speakers
| Type | Bookshelf |
| Configuration | 2-way Speaker System |
| Screw-type Terminals (banana plug compatible) | Yes |
| Gold Plated Terminals | Yes |
| Magnetically Shielded | Yes |
| Grill | Detachable |
Speaker Specifications
| Peak Input Power | 80 Watt |
| Frequency Response | 50Hz ~ 45kHz |
| Impedance | 6Ω |
| Sensitivity | 85dB/W at 1m |
| Tweeter | 25 mm (1") Soft Dome type |
| Woofer | 120 mm (4-3/4") Cone type |
Dimensions & Weight
| Dimensions Speaker (WxHxD) | 158 x 270 x 264 mm |
| Weight Speaker (Net) | 4.3kg per piece |
