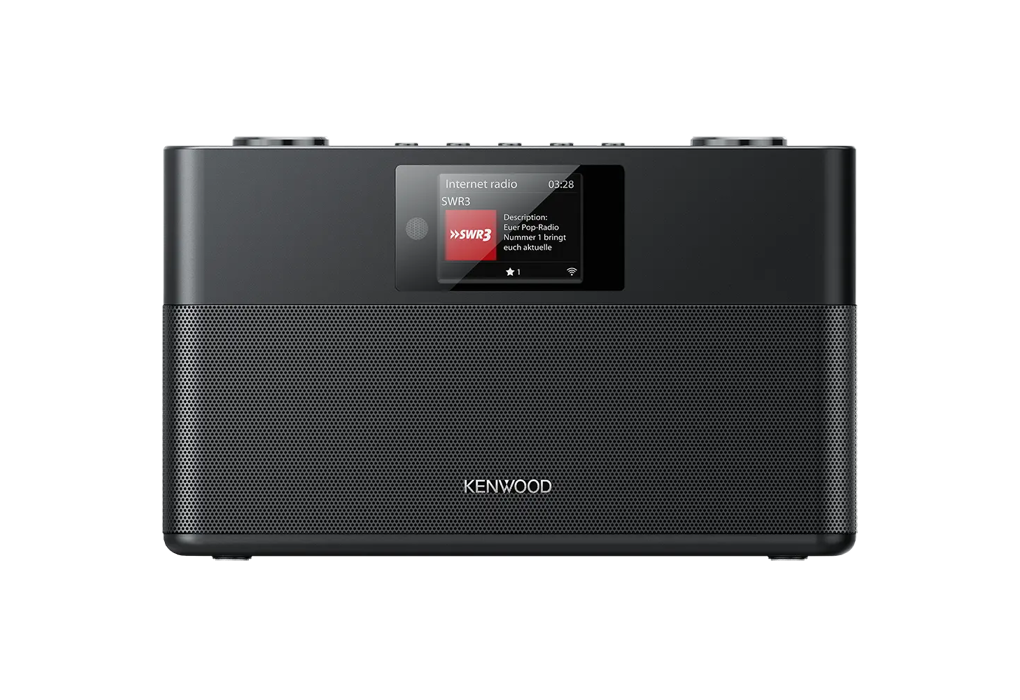

CR-ST120S-BNew
Smart radio with internet radio, Bluetooth, DAB+ and IPS color display
Perfect for your home!
Experience powerful sound and a state-of-the-art source selection with the CR-ST120S: a 2.4-inch IPS color display, 2 x 10 W RMS DSP amplifier, and bass-reflex speakers for clear and rich sound. Enjoy music via Spotify, Deezer, internet radio, or DAB+. In addition to these sources, this all-rounder also offers Bluetooth® streaming, USB, and a line-in input. A clock with two alarms and a sleep timer make the CR-ST120S a valuable companion for everyday use.
Key Features
| DAB+ & FM RDS Tuner |
| Internet Radio |
| Bluetooth Audio Streaming |
| Spotify Connect / Deezer-Streaming |
| USB and Line-In (3,5mm jack) inputs |
| 6,1 cm IPS color display (2.4 inches) |
| Clock function including Dual-Alarm and Sleeptimer |
| WiFi 802.11a/b/g/n (2.4GHz/5GHz) |
| 2 x 10W RMS Bassreflex Speaker-System |
| Bassreflex Stereo Speaker |
| 20 station presets / 10 Spotify presets |
| Remote Control via OKTIV App |
| IR-Remote Control |
| Available in 2 colors; Black and White |
General Features
| Remote Control | 31-key Slim Type Remote |
| Remote Control App | Yes, (UNDOK App) |
Tuner Features
| Tuner | Yes, FM with RDS |
| Tuner (DAB+) | Yes |
| Radio Data System | Yes |
| Radio Text | Yes |
| PTY (FM) | Yes |
| PTY (DAB) | Yes |
| DLS (DAB) | Yes |
| Number of Presets (FM) | 20 |
| Number of Presets (DAB) | 20 |
Bluetooth General Features
| Technology | Version 5.2 Class 1 |
| Advanced Audio Distribution Profile (A2DP) | Yes |
| Audio/Video Remote Control Profile (AVRCP) | Yes |
| Output power | 4.83 dBm |
| Maximum service area | About 10m (Communication range may vary depending on the enviromental conditions) |
| Frequency band | 2.402 GHz - 2.480 GHz |
Network Features
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Internet Radio | Yes |
| Spotify Connect | Yes |
| Spotify Lossless Audio | Yes |
| Deezer | Yes |
USB Features
| Playable Files | MP3 |
| Compatible Media | Mass Storage Device |
| Repeat Playback | Titel / Folder / All |
| Random Playback | Yes |
Analogue Inputs/Outputs
| Auxiliary Input Jack (3.5mm) | Yes |
| Output Jack (3.5mm) | Yes |
Amplifier Features
| Maximum Stereo Output Power | 2 x 10 Watt |
Speakers
| Type | 2 x 3"(7,62 cm) Speaker |
| Configuration | Full Range Bass Reflex System |
| Grill | Fixed Metal Grill |
Audio Specifications
| Maximum Practical Power | 2 x 10 Watt |
Tuner Specifications
| FM Tuning Frequency Range | 87.5 ~ 108MHz |
| DAB+ Tuning Frequency Range | 174,928 MHz ~ 239,200 MHz (Band III) |
USB Specifications
| Format | USB Host (Playback) |
| USB Standard | 1.1 Full Speed |
| Compatible Files | MP3 files with file extension <.mp3> |
| MP3 Bitrate (CBR/VBR) | 32 kbps to 320 kbps |
| Maximum Current Supply | 500mA |
| File System | FAT 16 / 32 |
Network Specifications
| Wi-Fi IEEE Standard | IEEE 802.11 |
| Wi-Fi Protocol | a / b / g / n |
| Wi-Fi Security Encryption | WEP, WPA, WPA2 (PSK), WPS |
| Wi-Fi Frequency Range | 2.412 - 2.472 GHz |
| Wi-Fi Frequency Range | 5.18 - 5.32 GHz |
| Wi-Fi Frequency Range | 5.5 - 5.7 GHz |
| Wi-Fi Frequency Range | 5.745 - 5.825 GHz |
| Wifi Output Power WiFi 2,4G | 14.88 dbm |
| Wifi Output Power WiFi 5G | 14.93 dbm |
| Wifi Output Power WiFi 5,8G | 7.37 dbm |
General Specifications
| Display Type | 6,1 cm IPS color display (2.4 inches) |
Power Specifications
| Stand-by Power Consumption (less than) | 0.7 Watt |
| Power Supply | 100-240V AC 50/60Hz |
| DC Output | 12V / 2A / 24W |
| Operational Temperature Range | 0 °C - 35 °C |
Dimensions & Weight
| Dimensions (WxHxD) | 245 x 145 x 105 mm |
| Weight (Net) | 1.7kg |
