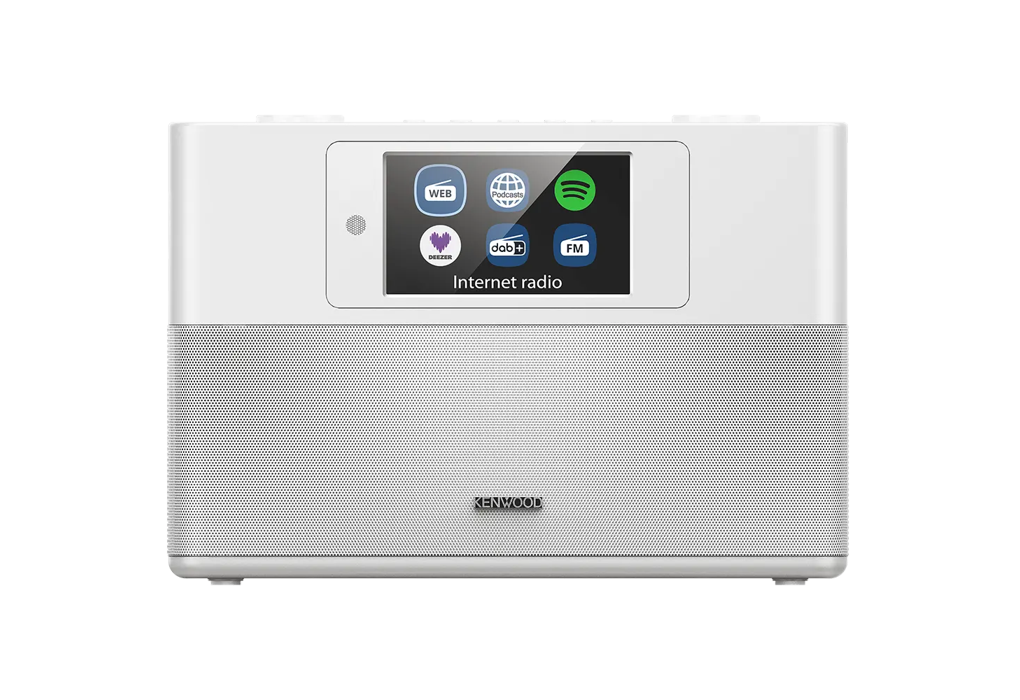

CR-ST200S-WNew

Compact Internet Radio, DAB+, Spotify, USB Radio

Compact Smart Radio with DAB+, Internet Radio, FM-RDS, Spotify Connect, Bluetooth, USB and TFT Colour-Display. Additionally you can listen to your favourite music via Bluetooth or Spotify Connect.

Tuner (DAB+)
Wi-Fi
Bluetooth
Spotify Connect

Key Features

DAB+ & FM RDS Tuner

Internet Radio

Bluetooth Audio Streaming

Spotify Connect / Deezer-Streaming

USB and Line-In (3,5mm jack) inputs

11 cm IPS color display (4.3 inches)

Clock function including Dual-Alarm and Sleeptimer

WiFi 802.11a/b/g/n (2.4GHz/5GHz)

2 x 15W RMS Bassreflex Speaker-System

Bassreflex Stereo Speaker

20 station presets / 10 Spotify presets

Remote Control via OKTIV App

IR-Remote Control

Available in 2 colors; Black and White

General Features

Remote Control	31-key Slim Type Remote
Remote Control App	Yes, (UNDOK App)

Tuner Features

Tuner	Yes, FM with RDS
Tuner (DAB+)	Yes
Radio Data System	Yes
Radio Text	Yes
PTY (FM)	Yes
PTY (DAB)	Yes
DLS (DAB)	Yes
Number of Presets (FM)	20
Number of Presets (DAB)	20

Bluetooth General Features

Technology	Version 5.2 Class 1
Advanced Audio Distribution Profile (A2DP)	Yes
Audio/Video Remote Control Profile (AVRCP)	Yes
Output power	4.79 dBm
Maximum service area	About 10m (Communication range may vary depending on the enviromental conditions)
Frequency band	2.402 GHz - 2.480 GHz

Network Features

Wi-Fi	Yes
Bluetooth	Yes
Internet Radio	Yes
Spotify Connect	Yes
Spotify Lossless Audio	Yes
Deezer	Yes

USB Features

Playable Files	MP3
Compatible Media	Mass Storage Device
Repeat Playback	Titel / Folder / All
Random Playback	Yes

Analogue Inputs/Outputs

Headphone Jack (3.5 mm)	Yes
Auxiliary Input Jack (3.5mm)	Yes

Amplifier Features

Maximum Stereo Output Power

2 x 15 Watt

Speakers

Type	2 x 3"(7,62 cm) Speaker
Configuration	Full Range Bass Reflex System
Grill	Fixed Metal Grill

Audio Specifications

Maximum Practical Power

2 x 15 Watt

Tuner Specifications

FM Tuning Frequency Range	87.5 ~ 108MHz
DAB+ Tuning Frequency Range	174,928 MHz ~ 239,200 MHz (Band III)

USB Specifications

Format	USB Host (Playback)
USB Standard	1.1 Full Speed
Compatible Files	MP3 files with file extension <.mp3>
MP3 Bitrate (CBR/VBR)	32 kbps to 320 kbps
Maximum Current Supply	500mA
File System	FAT 16 / 32

Network Specifications

Wi-Fi IEEE Standard	IEEE 802.11
Wi-Fi Protocol	a / b / g / n
Wi-Fi Security Encryption	WEP, WPA, WPA2 (PSK), WPS
Wi-Fi Frequency Range	2.412 - 2.472 GHz
Wi-Fi Frequency Range	5.18 - 5.32 GHz
Wi-Fi Frequency Range	5.5 - 5.7 GHz
Wi-Fi Frequency Range	5.745 - 5.825 GHz
Wifi Output Power WiFi 2,4G	14.63 dbm
Wifi Output Power WiFi 5G	14.76 dbm
Wifi Output Power WiFi 5,8G	7.38 dbm
