DMX6523DABSNew

Digital AV Receiver • 6.8" WSVGA Display • Wireless Apple CarPlay®/Android Auto™ & iPhone & Android Mirroring • DAB+ Tuner

6.8" WSVGA Display. Works Wirelessly or via USB with Apple CarPlay®/Android Auto™. Wireless Screen Mirroring for iPhone & Android Smartphone. Built-in DAB+ Digital radio Tuner. Optimal Sound Performance with 13 Band Graphic EQ and Time Alignment. Play back from USB devices audio and video files compressed in various formats. Rear View Camera Input with Parking Guidelines.

High Resolution WSVGA Screen
Apple CarPlay – Connect Wirelessly or via USB
Android Auto™ – Connect Wirelessly or via USB
Wireless Mirroring for iPhone/Android
DAB+ tuner built-in
Built-in Bluetooth
Top Menu Customize
Rear View Camera Input

High Resolution WSVGA (1024 x 600px) LCD Display

The 1024x600px Wide Super VGA (WSVGA) display reproduces approximately 1.6 times higher resolution than the conventional WVGA display. You can enjoy finely detailed expression of color gradients and lifelike visuals in dramas and movies, enhancing your viewing experience.

Apple CarPlay – Connect Wirelessly or via USB

A smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch.

*Some features, applications, and services are not available in all areas.

Android Auto™ – Connect Wirelessly or via USB

Android Auto was designed with safety in mind. With larger touch targets, a split-screen interface, and easy-to-use voice actions, it's designed to minimize distraction so you can stay focused on the road.

* Compatible Android phone required.

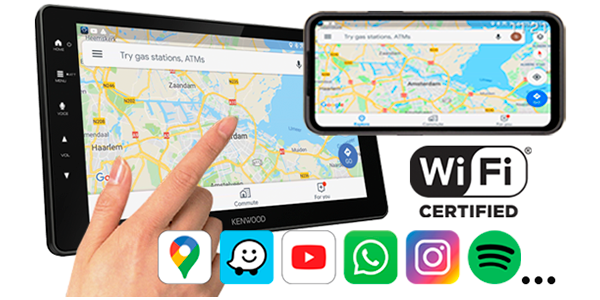

Wireless Mirroring for smartphone

By installing the “MirroringAPP+”, your iPhone & Android phone* screen is seamlessly displayed on the receiver's large screen wirelessly. You can enjoy a variety of apps such as Waze, YouTube, and Instagram. Touch control is possible from both screen and smartphone.

*Selected smartphones only

MirrorApp+ available in Play Store and App Store

Built-in DAB+ Digital radio Tuner

DAB+ is short for Digital Audio Broadcasting, meaning the digital transmission of sound. DAB+ radios are digital radios that are the successors of classic FM radios. DAB+ delivers CD-quality crystal clear sound and doesn't suffer from the same types of interference or static issues than with analogue AM/FM radio. Tuning is also easier: simply select your favourite radio station from the alphabetical station list.

Sound Adjustment Features

For optimal sound tuning enhancements.

Optimal Sound Performance with 13 Band Graphic EQ and Time Alignment

Use the graphic equalizer to tailor the sound quality to your unique tastes. Additional sound staging is available with the Time Alignment feature, designed to provide optimal sound performance.

Rear View Camera Input with Parking Guidelines

An optional rear view camera enhances safety while backing up and monitoring behind your vehicle. Built-in, adjustable parking guidelines further add to its effectiveness.

Easy installation with a compact rear chassis

Despite its double-DIN display, the L-shaped chassis is only half sized than conventional double-DIN units.
The reduced depth and the L-shape of the chassis contributes to a weight reduction and facilitates easier installation.

Key Features

6.8" WSVGA Display with Capacitive Touch Panel.

Wired & Wireless CarPlay® & Android Auto™

True Wireless Mirroring, 2-Way Touch Control for iPhone & Android

Built-in DAB+ Digital radio Tuner

Built-in Bluetooth® technology for Handsfree calling & Audio Streaming.

High Current 2.1A Charging USB port.

Front & Rear + Subwoofer (Mono) Preouts - 2.5V

13 Band EQ & Digital Time Alignment

Rear View Camera Input with Parking Guidelines

Single DIN Short Chassis Design for easy installation

General Features

DIN Size	2 DIN
Smooth GUI	Yes
Selectable GUI Background Wallpaper	Yes
Key Illumination	White color
Attenuator with Smooth Volume Return	Yes
Touch Sensor Tone	Yes
Optional IR remote controller	Yes, (KNA-RCDV331)
Digital Clock (24H)	Yes
Built-in Bluetooth	Yes
DAB Tuner Built-in	Yes
Made for iPhone	Yes
Apple CarPlay – Connect Wirelessly or via USB	Yes
Android Auto™ – Connect Wirelessly or via USB	Yes
Wireless Mirroring for iPhone/Android	Yes
Firmware upgreadable	Yes

Monitor Features

Screen Type	6.8" Wide SVGA
Display Type	Glare
Display Panel	Capacitive
Display film	Anti Fingerprint
High Resolution WSVGA Screen	1024 x 600 pixel
LCD backlight	White LED
Display Mode	3 Mode (Normal(default) / 16:9 / 4:3)
Screen Adjustments	Brightness / Tint / Color / Contrast
Dimmer function	Manual/Sync
Dimmer Level	Auto/On/Off
Visual Source Mode	Mirorring / CarPlay / Android Auto.
Mechanism type	Fixed
NTSC/PAL judge	Yes (Auto)
Display Off Mode	Yes

Multimedia GUI Features

OSDC Type	Graphic
Menu text	14 languages: ► English(UK)(Default) ► English(US) ► Spanish ► French ► German ► Italian ► Dutch ► Portuguese ► Arabic ► Hebrew ► Greek ► Polish ► Czech ► Hungarian
Demonstration Mode	Yes
Top Menu Customize	Yes
Opening Screen Type	standard
Wallpaper customizable	6 x presets + 2 x user set
R-CAM interrupt	Yes
R-CAM Parking Guide Lines	Yes, Built-in, customizable

Network & Wifi features

WiFi built-in	built-in
Frequency Range	5 GHz (5,745– 5,825 GHz)
Output Power	5GHz / SISO: 13.78 dBm
Wireless connection for Apple CarPlay	Yes
Wireless connection for Android Auto	Yes
Wireless connection for iPhone & Android Mirroring	With MirrorApp+ application

Tuner Features

FM Reception	Yes
AM (MW/LW) Reception	Yes
Tuning mode	Auto1/Auto2/Manual
Up/Down Seek/Scan	Yes
Tuner Presets (FM/AM)	36 Presets (24FM / 12AM)
Automatic Memory Entry (AME)	Yes
Radio Data System	Yes
Radio Text Plus	Yes
Traffic Information	Yes
Local search	Yes
AF Regional	Selectable: AF/AF Reg/OFF
Enhanced Other Networks Function (EON)	Yes
Program Type Function (PTY)	Yes

CE DAB tuner features

DAB+ tuner built-in	Yes
Digital Radio Certification Mark	Yes
Intelligent seek	Yes
Tuning mode / Seek mode	Auto1/Auto2/Manual
Service preset	15 ch * 1 bank presets,
Service list by alphabet order	Yes
Alphabet Search	Yes
DAB-DAB/DAB-FM auto switch	Yes
Seamless DAB-FM blending	Yes
DLS (Dynamic Label)	Yes
PTY (Programme Type) search	Yes
Announcement Switching (ASW) Select	Yes
Slide Show	Yes
Soft linking	Yes
Antenna power supply on/off switch	Yes

Bluetooth General Features

Hands Free Profile (HPF)	Ver. 1.8
Audio Streaming (A2DP)	Yes, (SBC/AAC)
Simple Secure Pairing (SSP)	Yes
Phonebook Access Profile (PBAP)	Yes
PBAP call history	Up to 20 entries of dialed, received and missed calls
Audio/Video Remote Control Profile (AVRCP)	Yes, V1.6
iPhone & Android automatic pairing via USB	Yes
Private mode	Yes
Interrupt call request	Yes
Voice Control	Yes
Noise Canceller	Yes
Echo Canceller	Yes
High-quality noise canceling microphone	built-in
Bluetooth firmware upgradeable	Yes, Included in system updates

Playable Audio File

AAC (*.aac) files are playable	USB
MP3 files are playable	USB
WMA (.wma) files are playable	USB
WAV (.wav) files are playable	USB
FLAC files are playable	USB

CE_Playable Video file

MPEG1/2 files are playable	USB
MPEG4 files are playable	USB
WMV files are playable	USB
H.264 files are playable	USB
mkv files are playable	USB

USB Features

USB terminal	Yes, rear side / 1m cable / fix
USB Type	2.0 High speed
Yes
Drive Change	Yes
File System	FAT16 / FAT32 / exFAT / NTFS
Tag Information Display	Yes
Album Art Display	Yes
Repeat Play	Folder/File/All
Random play	Folder
Category search	Yes
Link Search	Yes
Last Position Memory / Resume	Yes
Time code display	Yes
USB ports maximum output current	2.1A

iPhone Features

Connection via:	USB / Bluetooth
Plug & Play	Yes
Made for iPhone	Yes
Tag Information Display	Yes
Time Code Display	Yes
List Access	Yes
Album art support	Yes
Random Play	Yes
Repeat Play	Yes
Skip	Yes
iAP over Bluetooth	Yes
Works with Apple CarPlay	Wired & Wireless

Android Phone Control

Connection via	USB / Bluetooth
Works with Android Auto	Wired & Wireless
Android Open Accessory Protocol	Yes (For Android Auto)

Audio features

Max. Output Power	4 x 50W
Primary Power Output	4 x 22W
Pre-out	2 RCA : FRONT/REAR + SUB(mono)
Pre-out Output Level	2.5V
Volume Offset	Yes
Volume Type	DSP
Built-in Amplifier Off	Yes
Balance/Fader Control	Yes
Beep On/Off	Yes

Multimedia DSP Features

Position Preset	4 Presets
Position Preset
Graphic Equalizer	13 bands
G-EQ manual setting	Yes
G-EQ adjustable level	Yes, +9db / -9dB
Time Alignment	0 ~ 610cm
HPF Cut Off Frequency	14 steps
HPF Cut Slope Level	4 steps
Low Pass Filter (LPF)	Yes (Non-Fading)
LPF Cut Off Frequency	14 steps
LPF Cut Slope Level	4 steps
X'over	Yes
Speaker Size Control	Yes
Channel Level Control	Yes
Loudness	Yes
Tweeter volume	Yes
Bass Boost	Yes
Source Volulme Offset	source independent

Connectivity

DC-Cord	22pin (New Type) to ISO
Reverse sensor wire	Yes
Parking sensor (handbrake) wire	Yes
Power Control (P.CON) wire	Yes
Dimmer control wire	Yes
Preout	2 x RCA (Front/rear) + Sub (mono)
AV-Input (Non Switchable)	(Mini-jack) audio & video
Video Out	RCA x1 (Source: USB)
Rear View Camera Input	Dedicated RCA Video-in
GPS Aerial Input	GPS antenna included
FM Antenna Input	JASO connector
DAB Aerial input	SMB
External microphone input	3,5mm mini-jack
OEM Wired Remote Control ready	Yes, Optional interface needed
Learning Steering Remote Function	Yes

Tuner Specifications

FM range: 87.5Mhz - 108MHz (50Khz step)	Yes
FM Usable Sensitivity	1.8μV/75ohm (S/N 30dBf)
FM Frequency Response	30Hz ~ 14kHz (± 3dB)
FM Signal to noise ratio (Mono)	50dB
FM Stereo Separation (1kHz)	35dB
MW range: 531kHz - 1611kHz (9kHz step)	Yes
MW Usable Sensitivity	99μV

DAB Tuner specifications

Band III - Frequency range	174.928 MHz - 239.2MHz
Mode	Band III
Sensitivity	- 98dBm
Signal to noise ratio	82dB
Audio format	MPEG1 Audio Layer II, MPEG4 HE-AAC V2
Output Voltage	14V (10.5V to 16V allowable)
Maximum Current	< 100 mA

Bluetooth specifications

Technology	Bluetooth V5.0
Frequency	2.402 - 2.48 GHz
Output power	+9 dBm (max), Power Class 1
Maximum range	Line of sight approx. 10 meter
Handsfree profile (HFP)	Yes, V 1.8
Advanced audio distribution profile (A2DP)	Yes, V 1.3
Audio Codec	SBC/AAC
Audio/Video remote control profile (AVRCP)	Yes, V1.6
Phonebook access profile (PBAP)	Yes, V1.2

USB Specifications

USB Version compatibility	USB 2.0 High Speed
File System	FAT 16/32 / exFAT / NTFS
Maximum Supply current	2100mA
D/A Converter	24bit
Video Decoder	MPEG1/2/4, WMV, H.264, mkv
Audio Decoder	MP3, WMA, AAC, WAV, FLAC

Audio Specifications

Maximum Power	50 W x 4
Output Power (DIN45324,+B=14.4v)	22 W x 4
Output frequency band	20 Hz ~ 20 kHz
Preout Level	2500 mV / 10 kOhm,
Preout Impedance	≤ 1400 Ohm
Speaker Impedance	4 Ohm ~ 8 Ohm

Video Specifications

Color System of External Video Input	NTSC/PAL
External Video Input Level (RCA)	1 Vpp / 75 Ohm
Video Output Level (RCA)	1 Vpp / 75 Ohm

Monitor Specifications

Screen size (Diagonal)	6.8 Inches Wide
Display system	Transparent TN LCD Panel
Drive system	TFT Active Matrix System
Number of Pixels	1843200pixels (1024(H) x 600(V) x RGB)
Effective pixels	99.99%
Pixel arrangement	RGB Striped
Back lighting	LED (Light Emitting Diode)

General Specifications

Operating voltage	14.4V (10.5 ~ 16V Allowable)
Dimensions (WxHxD)	178 x 100 x 86mm
Weight	1070 gr.
Weight, inclu. sleeve & escutcheon	1.07 kg

Accessories

Release keys	2 pieces
Escutcheon	Yes
Installation Sleeve	Yes
DC cord	25 cm
GPS Antenna Ground Plane Mount (Adhesive Metal Pad)	Yes
Multi-Language Instruction Manual Included

Additional Images

DMX6523DABSNew

Digital AV Receiver • 6.8" WSVGA Display • Wireless Apple CarPlay®/Android Auto™ & iPhone & Android Mirroring • DAB+ Tuner

High Resolution WSVGA (1024 x 600px) LCD Display

Apple CarPlay – Connect Wirelessly or via USB

Android Auto™ – Connect Wirelessly or via USB

Wireless Mirroring for smartphone

Built-in DAB+ Digital radio Tuner

Sound Adjustment Features

Optimal Sound Performance with 13 Band Graphic EQ and Time Alignment

Rear View Camera Input with Parking Guidelines

Easy installation with a compact rear chassis

Key Features

General Features

Monitor Features

Multimedia GUI Features

Network & Wifi features

Tuner Features

CE DAB tuner features

Bluetooth General Features

Playable Audio File

CE_Playable Video file

USB Features

iPhone Features

Android Phone Control

Audio features

Multimedia DSP Features

Connectivity

Tuner Specifications

DAB Tuner specifications

Bluetooth specifications

USB Specifications

Audio Specifications

Video Specifications

Monitor Specifications

General Specifications

Accessories

Digital AV Receiver • 10.1" HD Display • Floating screen • Wireless Android Auto, Car Play & Android screen mirroring

Digital AV Receiver • 7.0" WVGA Display • Wireless Apple CarPlay/Android Auto & Android screen mirroring • DAB+ Tuner

Digital AV Receiver • 6.8" WVGA Display • Wireless Apple CarPlay/Android Auto • Wired Android screen mirroring • DAB+ Tuner

Digital AV Receiver • 6.8" WSVGA Display • Wireless Apple CarPlay®/Android Auto™ & iPhone & Android Mirroring • DAB+ Tuner

Digital AV Receiver • 6.8" WSVGA Display • Wired Apple CarPlay®/Android Auto™ & iPhone & Android Screen Mirroring • DAB+ Tuner

Digital AV Receiver • 6.8" WVGA Display • Wired Apple CarPlay/Android Auto & Android USB mirroring • DAB+ Tuner

Digital AV Receiver • 6.8" WVGA Display • Wired Apple CarPlay/Android Auto • Android USB mirroring

Digital Media Receiver • 6.8" WVGA Display • Wired Android screen mirroring • DAB+ Tuner

Digital Media Receiver • 6.8" WVGA Display • Wired Android screen mirroring •
