DMX9724XDSNew

1DIN Digital Multimedia Receiver with Floating,10.1" High Definition Display Panel & Enhanced Wireless Smartphone Connections.

  • High Definition Display
  • Wifi built-in
  • Built-in Bluetooth
  • Apple CarPlay – Connect Wirelessly or via USB
  • Android Auto™ – Connect Wirelessly or via USB
  • Wireless Mirroring for Android
  • Top Menu Customize
  • DAB+ tuner built-in
  • KENWOOD Remote App Ready
  • KENWOOD Portal App Ready
  • Digital Sound Processor (DSP)
  • Digital Time Aligment (DTA)
  • Camera inputs
  • Rear View Camera Input
  • HD camera input

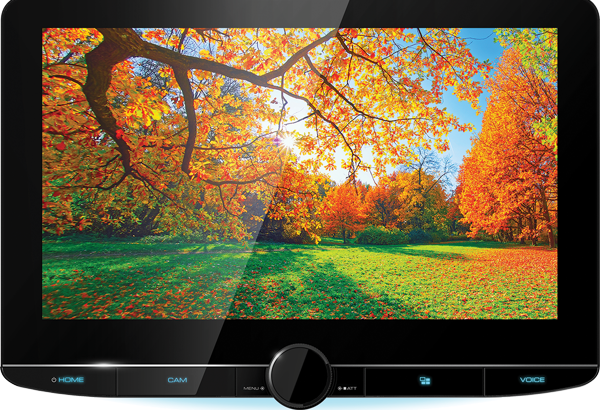

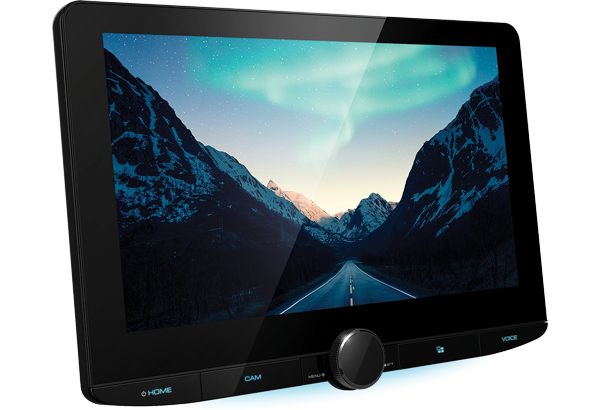

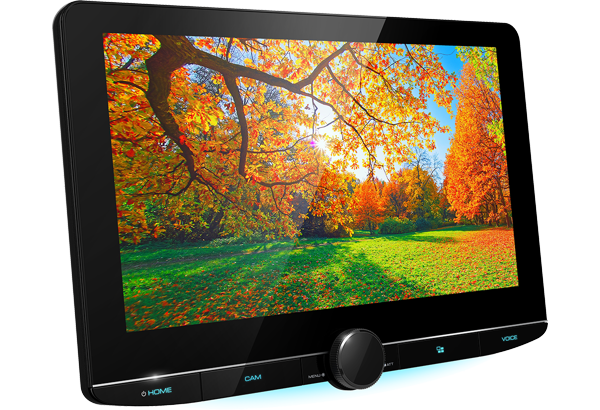

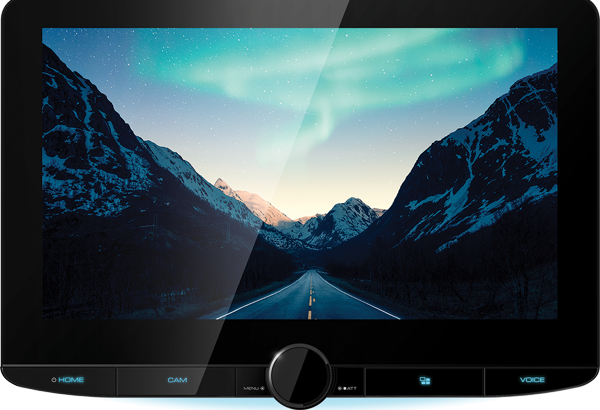

Large 10.1 inch HD display

Providing room for more information that is large and easy to comprehend with just a glance.

High Definition Display — Overwhelming Power of Expression —

WVGA versus HD display

The HD display is about 2.4 times higher resolution than the conventional WVGA panel. With this display, jagged edges are eliminated in the displayed image, providing sharp and vivid images. In addition, the color development increases, and the individual colors of the image become clear, so you can enjoy high-definition images.

High Res Audio

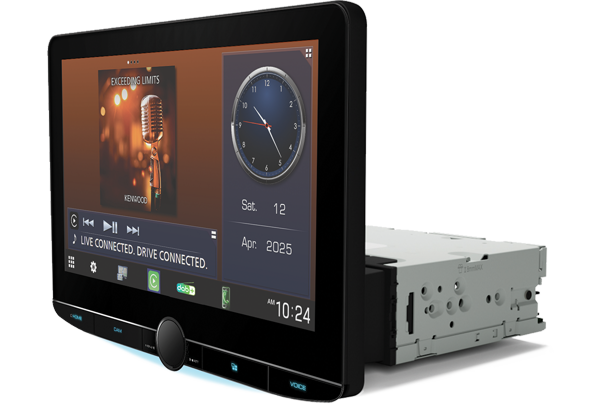

Floating Panel Mechanism with 4-Way Position Adjustment

Fully adjustable display allows you to change the depth, height, angle
and left / right for easy vehicle fitment.

[A]  Depth:  2steps (0 / 19mm)
[B]  Height:  4 Steps (0 / 15 / 30 / 45mm)
[C]  Tilt:  -10° ~ 45°
[D]  Left/Right:  3 Steps (-30 / 0/ 30mm)

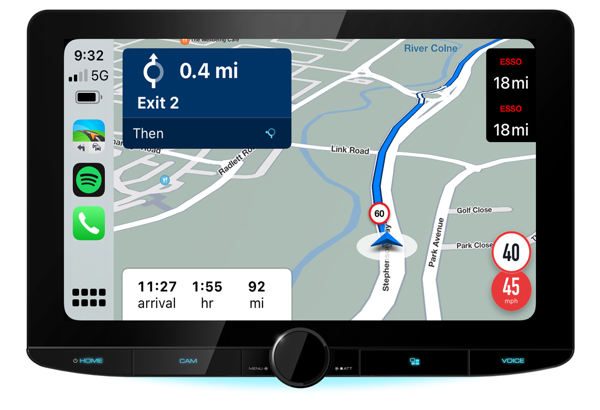

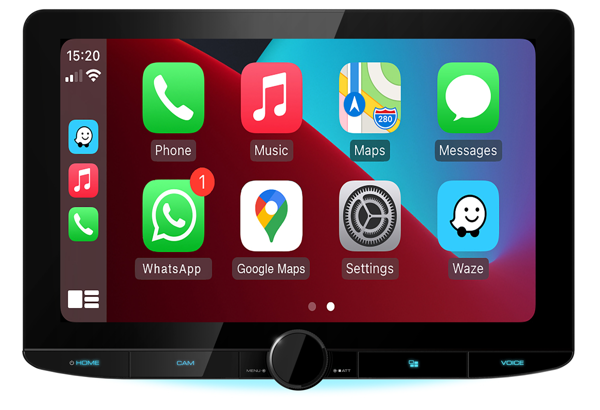

Apple CarPlay – Connect Wirelessly or via USB

A smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch.

*Some features, applications, and services are not available in all areas.
For details, see: www.apple.com/ios/feature-availability/#applecarplay-applecarplay

Works with CarPlay badge

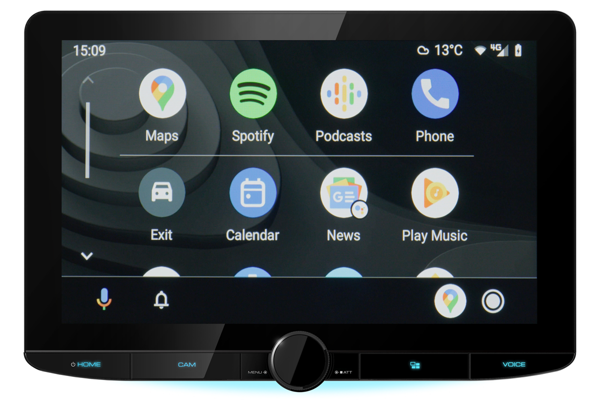

Android Auto™ – Connect Wirelessly or via USB

Android Auto was designed with safety in mind. With larger touch targets, a split-screen interface, and easy-to-use voice actions, it's designed to minimize distraction so you can stay focused on the road.

* Compatible Android phone and compatible active data plan required.
* Some features and devices may not be available in all countries. Subject to availability.

Works with AndroidAuto badge

Wireless Mirroring for Android

Wireless Mirroring is a groundbreaking solution for seamlessly displaying and controlling your Android smartphone* apps on wide touchscreen of the KENWOOD receiver without any cable or network connection *.

* compatible phone required.

Built-in DAB+ Digital radio Tuner

DAB+ is short for Digital Audio Broadcasting, meaning the digital transmission of sound. DAB+ radios are digital radios that are the successors of classic FM radios. DAB+ delivers CD-quality, crystal clear reception with low noise and no audio distortion. Tuning is also easier: simply select your favourite radio station from the alphabetical station list.

Sound Adjustment Features

For optimal sound tuning enhancements.

5.0V - 3 preouts - DTA - X'over

Optimal Sound Performance with 13 Band Graphic EQ and Time Alignment

Use the graphic equalizer to tailor the sound quality to your unique tastes. Additional sound staging is available with the Time Alignment feature, designed to provide optimal sound performance.

4 Camera Inputs

To enable a smarter driving experience, receivers featuring 4 camera inputs allow for the utmost in convenience, flexibility, and safety. With 4 camera inputs, you can connect a rear camera, side (blind spot) cameras, and a KENWOOD dashboard camera (DRV-N520 sold separately).

HD Front / Rear Camera Input

The optional CMOS-740HD camera can be connected to the receiver’s front and/or rear camera input, displaying the image in true 1280 x 720 (720P) High Definition on compatible receivers. The camera’s built in High Dynamic Range technology further helps to overcome the negative effects of dark or bright conditions, making it the safest front or rear camera option available.

Dash Camera Linkage with DRV-N520

Full HD video recording is available with a DRV-N520 compact windshield mount camera that can record every event in front of you while you drive. High Dynamic Range (HDR) allows flawless recording regardless of extreme bright light or very dark conditions. With a built-in gyro sensor, if an accident occurs it will be saved in a separate portion of memory within the 8GB SD card for viewing. Additional safety and warning features can be activated to avoid frontal collisions or remind you if traffic has moved in front of you.

Digital Optical Output

This unit features an TOSLINK digital optical audio output; using fiber optics to transmit high-quality digital audio signals without interference or signal losses to another audio components.


Key Features

Large 10.1" High Definition Monitor with Capacitive Touch Panel
Floating Panel Mechanism with 4-way Position Adjustment
Wired & Wireless CarPlay® & Android Auto™, the ideal way to use your smartphone in the car.
Apple CarPlay® & Android Auto™ – Split Screen Support
Wireless Mirroring for Android
Bluetooth Hands Free & Audio Streaming
DAB+ Digital radio tuner for noise & interference free, crystal-clear digital stereo sound,
HDMI Input & 4 Camera Inputs: HD Front/Rear Camera Ready + DashCam Link Ready
3 RCA high power (5V) pre-outs • Digital Optical Output
DSP for optimal Sound Performance with 13 Band Graphic EQ and Time Alignment
High Quality Audio Parts Supporting High-Resolution Audio Reproduction
Monitor panel and chassis can be separated, allowing flexible installation in a variety of vehicles.

General Features

DIN Size2 DIN
Security Code Function ( user set)Yes, (4 digits)
Selectable GUI Background WallpaperYes
Key IlluminationVariable color
Installer MemoryYes
Back-up MemoryYes
Attenuator with Smooth Volume ReturnYes
Optional IR remote controllerYes, KNA-RCDV340
Digital Clock (24H)Yes
Built-in BluetoothYes
DAB Tuner Built-inYes
Wifi built-inYes
Made for iPhoneYes
Apple CarPlay – Connect Wirelessly or via USBYes
Android Auto™ – Connect Wirelessly or via USBYes
Wireless Mirroring for AndroidYes
Firmware upgreadableYes
HDMI inputfor video playback
Dashcam LinkYes

Monitor Features

Screen Type10,1" HD
Display filmAnti-Fingerprint / Anti-Reflection / Anti-Glare)
High Definition DisplayYes
Touch PanelCapacitive
Display Mode3 Mode (Full(default)/Auto/Normal)
Screen Adjustments► Noon & Night Memory.
► Brightness.
► Tint.
► Colour.
► Contrast.
► Black Level.
► Backlight.
Dimmer functionManual/Sync
Dimmer LevelSync / On / Off
Visual Source ModeMirorring / CarPlay / Android Auto.
Mechanism typeFloating panel with 4-way position adjustment
Panel Tilt Adjustment-10° ~ +45°
Panel Depth Adjustment2 steps: 0 / 19mm
Panel Height Adjustment4 steps: 0 / 15 / 30 / 45mm
Panel Left/Right Adjustment3 steps: -30 / 0 / 30mm
LCD viewing angle control"0" (Default) / "-1" / "-2" / "-3"
NTSC/PAL judgeYes (Auto)
Display Off ModeYes

Multimedia GUI Features

Menu text22 languages:
► English(UK)(Default)
► English(US)
► Spanish
► French
► German
► Italian
► Dutch
► Russian
► Portuguese
► Chinese (Simplified)
► Chinese (Traditional)
► Thai
► Turkish
► Arabic
► Persian
► Hebrew
► Greek
► Malaysian
► Indonesian
► Polish
► Czech
► Hungarian
Software updates (SoC)via USB
Graphics TypeGraphics
Spectrum AnalyzerYes
Demonstration ModeYes
Top Menu CustomizeYes
Opening Screen Typestandard
Preset Wallpaper TypeYes, 5 presets, 1x user, 1x Sync Album Art, 1x color customize.
Wallpaper colour changeYes
Multi WidgetsDriving Widget / Full Screen Widget
AnimationYes
R-CAM interruptYes
R-CAM Caution On Screen DisplayYes
R-CAM Parking Guide LinesYes
Front view camera mirrorYes
DashCam Control (DashCam Link)Yes
Rapid charge indicatorYes

Network & Wifi features

WiFi built-inbuilt-in
Frequency RangeDual Band (2.4GHz / 5GHz)
IEEE standard802.11a/b/g/n/ac
Wireless connection for Apple CarPlayYes
Wireless connection for Android AutoYes
Wireless connection for Android MirroringYes

Tuner Features

Tuner TypeEagle
FM(RDS) + AM(MW/LW) TunerYes
FM Stereo / Mono SelectorYes
Tuning modeAuto1/Auto2/Manual
Up/Down Seek/ScanYes
Station SelectManual / Preset (List)
Tuner Presets (FM/AM)20 Presets (15FM / 5AM)
Automatic Memory Entry (AME)Yes
Radio Data SystemYes
Radio Text PlusYes
Traffic InformationYes
Local searchYes
AF RegionalSelectable: AF/AF Reg/OFF
Auto TP searchYes
Enhanced Other Networks Function (EON)Yes
Program Type Function (PTY)Yes

CE DAB tuner features

DAB+ tuner built-inYes
DAB/DAB+ BandBand III
DAB-DAB/DAB-FM auto switchYes
Seamless DAB-FM blendingYes
Tuning mode / Seek modeAuto1/Auto2/Manual
Service preset15 ch * 1 bank presets,
Alphabet SearchYes
Service list by alphabet orderYes
Intelligent seekYes, (Service, Ensemble & Component)
Ensemble seekYes
Announcement Switching (ASW) SelectYes
DLS (Dynamic Label)Yes
DMB Audio (Digital multimedia broadcasting)Yes
PTY (Programme Type) searchYes
PTY (Programme Type) watchYes
Slide ShowYes
Soft linkingYes
Antenna power supply on/off switchYes
Digital Radio Certification MarkYes

Bluetooth General Features

ModuleShinwa
Hands Free Profile with High Sound QualityHFP V1.7
2 phones full time connectionYes
Audio Streaming (A2DP)Yes, (LDAC / SBC / AAC)
LDAC - High Resolution Audio StreamingYes
Max num. of regist. units for A2DP5 units
Serial Port Profile (SPP)Yes
Simple Secure Pairing (SSP)Yes
Phonebook Access Profile (PBAP)Yes
Audio/Video Remote Control Profile (AVRCP)Yes, V1.6
Multi Profile SupportYes
iPhone & Android automatic pairing via USBYes
KENWOOD Remote App Ready
KENWOOD Portal App ReadyYes
KENWOOD Music Mix SupportYes
Catchphone / Call WaitingYes
Private modeYes
Noise CancellerYes
Echo CancellerYes
High-quality noise canceling microphoneIncluded (rear wired)


CE_Playable Video file

MPEG1/2 files are playableUSB
MPEG4 files are playableUSB
WMV files are playableUSB
H.264 files are playableUSB
mkv files are playableUSB

USB Features

USB Type1x Type C
USB extension cable suppliedyes, 1m
Yes
Drive ChangeYes
Works with Android AutoYes
Works with Apple CarPlayYes
Tag Information DisplayYes
Album Art DisplayYes
Repeat/Scan/Random searchYes
Repeat PlayFolder/File/All
Random playFolder
Category searchYes
Link SearchYes
Last Position Memory / ResumeYes
Time code displayYes
USB ports maximum output current5V / 3.0A

iPhone Features

Connection via:USB / BT / Wifi
Plug & PlayYes
Made for iPhoneYes
Tag Information DisplayYes
List AccessYes
Album art supportYes
Music library searchYes
Alphabet searchYes
Skip searchYes
Random PlayYes
Repeat PlayYes
SkipYes
iPod Accessory Protocol (iAP)iAP2
iAP over BluetoothYes
Works with Apple CarPlayWireless or Wired via USB
Reverse browsingYes
Voice Control using Siri.Yes
Bluetooth Auto Paring for iPhoneYes
Battery charge + power controlYes
* Always update to latest Apple firmware

Android Phone Control

Connection viaUSB/Wifi/Bluetooth
Works with Android AutoWired & Wireless
Android Open Accessory ProtocolYes (For Android Auto)
Kenwood Smartphone ControlYes

Audio features

Max. Output Power (MOSFET Power IC)4 x 50W
Primary Power Output4 x 22W
Pre-out3RCA: Front/Rear/Subwoofer
Pre-out Output Level5V
Volume OffsetYes
Balance/Fader ControlYes, (via DSP)
Loudness ControlYes, By DSP
Bass BoostYes, (Via DSP)
Att.(-20dB) with smooth Volume ReturnYes
EqualizerYes, 13 Band Graphic EQ
Digital Sound Processor (DSP)Yes
Digital Time Aligment (DTA)Yes
Beep On/OffYes

Multimedia DSP Features

Car type controlOff / Compact / Sedan / Wagon / Minivan / SUV / Passenger Van
Speaker Size & Location ControlYes
X'over network3-Way / 2-way X'over / HPF / LPF
Listening postion control / Time AlignmentYes
Equalizer typeGraphical
Equalizer13-Bands
Equalizer presets / User set8 presets / 4 User set
Balance & Fader ControlYes
Source Volulme Offsetsource independent
Sound Effects► Bass Boost
► Supreme
► Loudness
► Sound Realizer
► Drive Equalizer
► Stage EQ
► Space Enhancer
Audio Setup MemoryYes

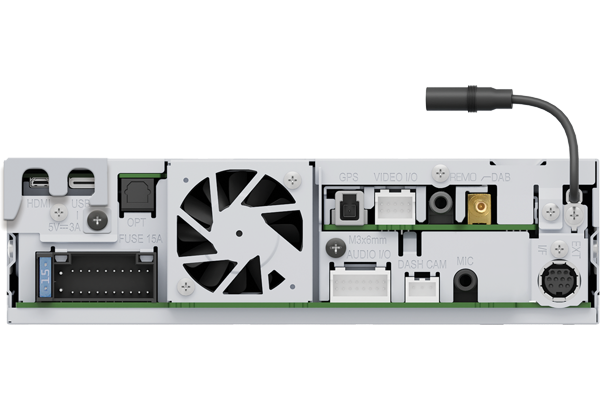

Connectivity

USB interfaceRear Side
DC-Cord20pin (New Type) to ISO
Reverse sensor wireYes
Parking sensor (handbrake) wireYes
Power Control (P.CON) wireYes
2-way (Tel/Navi) mute wireYes
Dimmer control wireYes
Speedpuls input wireYes
Amplifier pre-out3 x RCA: Front/Rear/Subwoofer
Digital Optical OutputYes
AV-Input1x mini-jack (selectable: AV-in / Camera-in)
AV OutputVideo: RCA / Audio: mini-jack
Available AV-Out sourceAV-in / Off
Camera inputsup to 4 camera's
Rear View Camera InputNTSC or HD-TVI input
Front View Camera Inputselectable: Front (NTSC or HD-TVI) or DashCam (NTSC)
Front Camera / DashCam selectableYes
HD camera inputFront & Rear camera input are HD Camera ready
HDMI inputType-D
Dashcam LinkYes
GPS Aerial InputGPS antenna included
FM Antenna InputJASO connector
DAB Aerial inputSMB connector
External microphone input3,5mm mini-jack
OEM Wired Remote Control readyYes, Optional interface needed
OEM Display Control readyYes, Optional interface (KIM) needed
Learning Steering Remote FunctionYes
Display input/output controlYes

Tuner Specifications

FM range: 87.5Mhz - 108MHz (50Khz step)Yes
FM Usable Sensitivity0.8μV/75ohm (S/N 30dBf)
FM Quieting Sensitivity1.6μV/75ohm (S/N 15.2dBf)
FM Frequency Response30Hz ~ 15kHz (± 3dB)
FM Signal to noise ratio (Mono)65dB
FM Selectivity(DIN)over 80dB (±400kHz)
FM Stereo Separation (1kHz)45dB
MW range: 531kHz - 1611kHz (9kHz step)Yes
MW Usable Sensitivity45μV
LW range: 153kHz - 279kHz (9kHz step)Yes
LW Usable Sensitivity25μV

DAB Tuner specifications

Band III - Frequency range174.928 MHz - 239.2MHz
ModeI, II, III, IV
Sensitivity- 100dBm
Signal to noise ratio90dB
Audio formatMPEG1 Audio Layer II, MPEG4 HE-AAC v2
DAB Aerial Connector TypeSMB
Output Voltage14.4V (11V to 16V allowable)
Maximum Current< 100 mA

Bluetooth specifications

TechnologyBluetooth V5.0
Frequency2.402 - 2.48 GHz
Output power+4dBm(max), power class 2
Maximum rangeLine of sight approx. 10 meter
Handsfree profile (HFP)Yes, V1.7
Serial port profile (SPP)Yes
Advanced audio distribution profile (A2DP)Yes
Audio CodecSBC/AAC/LDAC
Audio/Video remote control profile (AVRCP)Yes, V1.6
Phonebook access profile (PBAP)Yes
Multi Profile SupportYes

USB Specifications

USB Version compatibilityUSB 2.0 High Speed
File SystemFAT 16/32 / exFAT / NTFS
Maximum Supply current1500mA
D/A Converter24/32 bit
Video DecoderMPEG1/MPEG2/MPEG4/WMV/H.264/MKV
Audio DecoderMP3/WMA/AAC/WAV/FLAC/Vorbis
S/N Ratio98.5 dB (1kHz)
Dynamic Range89dB

Audio Specifications

Maximum Power50 W x 4
Output Power (DIN45324,+B=14.4v)22 W x 4
Output frequency band20 Hz ~ 88 kHz
Preout Level5000 mV / 1 kOhm,
Preout Impedance≤ 300 Ohm
Speaker Impedance4 Ohm ~ 8 Ohm

DSP Specifications

Frequency band62.5/100/160/ ~ /6.3k/10k/16k Hz
Equalizer Gain–9db ~ +9db
Time Alignment0 — 610cm(1 cm step)
Speaker type - Center► NONE
► 40mm X 70mm
► 5cm
► 10cm
► 13cm
► 16cm OVER
Speaker type - Front► O.E.M.
► 10cm
► 13cm
► 16cm
► 17cm
► 18cm
► 4" x 6"
► 5" x 7"
► 6" x 8"
► 6" x 9"
► 7" x 10"
Speaker type - Rear► NONE
► O.E.M
► 10cm
► 13cm
► 16cm
► 17cm
► 18cm
► 4" x 6"
► 5" x 7"
► 6" x 8"
► 6" x 9"
► 7" x 10"
Speaker type - Sub woofer► NONE
► 16cm
► 20cm
► 25cm
► 30cm
► 30cm over
2-Way X'over / Front/Rear (HPF) / FrequencyThrough, 30/40/50/ ~ /220/250 Hz
2-Way X'over / Front/Rear (HPF) / Slope-6/-12/-18/-24 (dB/oct)
2-Way X'over / Subwoofer (LPF) / Frequency30/40/50/ ~ /220/250 Hz, Through
2-Way X'over / Subwoofer (LPF) / Slope-6/-12/-18/-24 (dB/oct)
3-Way X'Over / High Pass Filter FrequencyThrough, 30/40/50/ ~ /220/250 Hz
3-Way X'Over / High Pass Filter Slope-12/-18/-24 (dB)
3-Way X'Over / Low Pass Filter Frequency30/40/50/ ~ /220/250 Hz, Through
3-Way X'Over / Low Pass Filter Slope-12/-18/-24 (dB/Oct
Subwoofer Level-50dB ~ 10dB
Car type control► Off
► Compact
► Sedan
► Wagon
► Minivan
► SUV
► Passenger Van

Video Specifications

Color System of External Video InputNTSC/PAL
External video input level (mini-jack)1 Vpp / 75 Ohm
External audio max. input level (mini-jack)2 Vpp / 25 kOhm
Video input level (RCA)1 Vpp, 75 Ohms
Video Output Level (RCA)1 Vpp / 75 Ohm
Audio Output Level (mini-jack)0.9 Vpp / 10 kOhm
HDMI - VGA input resolution640x480p @59.94Hz/60Hz
HDMI - 480p input resolution720x480p @59.94Hz/60Hz
HDMI - 720p input resolution1280x720p @59.94Hz/60Hz
HDMI - input Audio type16/20/24-bit Linear PCM

Monitor Specifications

Screen size (Diagonal)10.1 Inches Wide
Screen Size (WxH)223.7 x 125.8mm
Display systemAAS (Azimuthal Anchoring Switch) LCD panel
Drive systemTFT Active Matrix System
Number of Pixels2764800pixels (1280(H) x 720(V) x RGB)
Effective pixels99.99%
Pixel arrangementRGB Striped
Back lightingLED (Light Emitting Diode)

General Specifications

Operating voltage14.4V (11 ~ 16V Allowable)
Dimensions Monitor262 x 181 x 52mm
Weight Monitor1.1 kg
Dimensions Chassis (WxHxD)178 x 50 x 158mm
Weight Chassis1.3 kg.
Weight Chassis + Monitor2.4 kg.

Accessories

BracketArm bracket for the monitor unit
DC cord25 cm
RCA Audio-In/Out Connection CableYes
RCA Video-In/Out Connection CableYes
usb extension cableType-C, 1 meter
USB AdaptorType-C to Type-A
Screws (Parker-type)Ø 3 x 6mm, 3 pieces
Pan Head Screw (M-Type)M4 x 8mm, 8 pieces
Hex Head Screw (M-Type)M4 x 12mm, 4 pieces
GPS antennawith 3.5 m cable
GPS Antenna Ground Plane Mount (Adhesive Metal Pad)Yes
Handsfree Microphonewith 3 m cable
Multi-Language Instruction Manual IncludedQuick-Guide + Instruction manual
Manuals DownloadableYes
