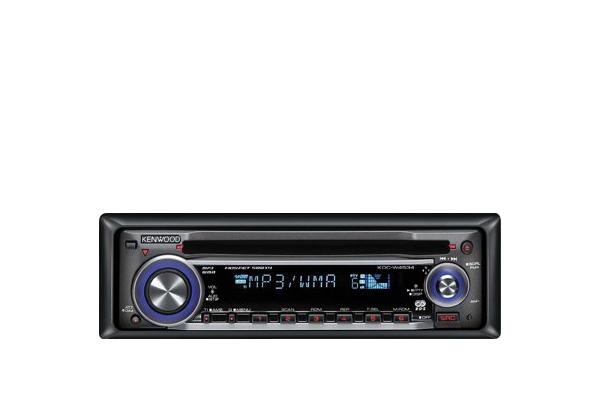

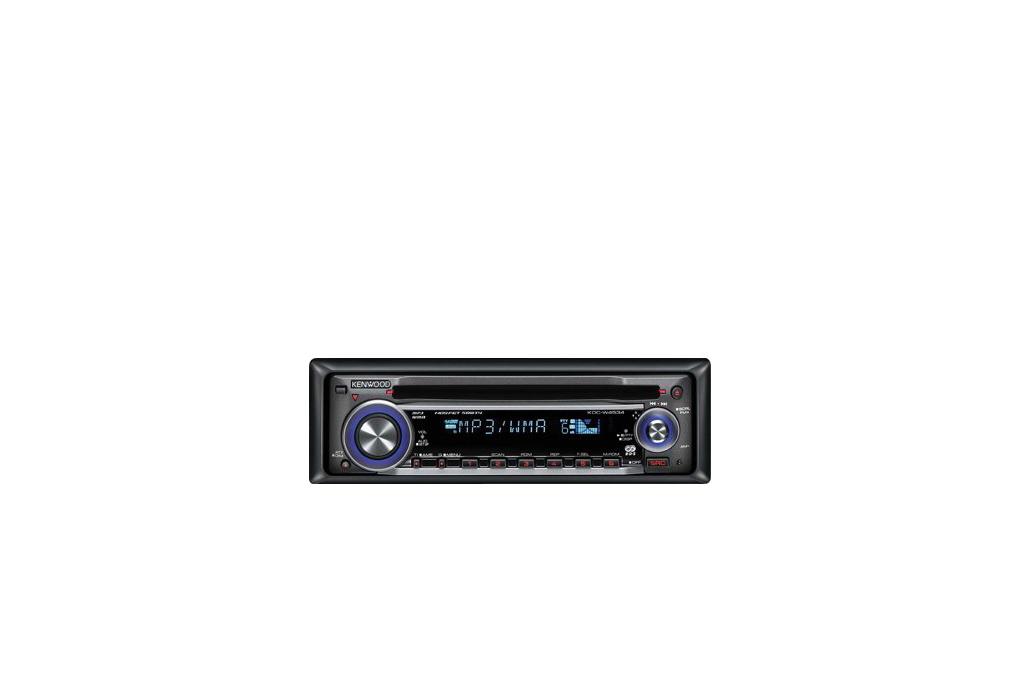

KDC-W4534Y

KDC-W4534Y

WMA/MP3/CD-Receiver with Changer Control

Top-end TDF model featuring attractive blue illumination. Four 50 W MOSFET amplifiers deliver music with high power and quality. Optional iPod adapter enables playback of music selections stored in an iPod player, and the provided AUX adapter with mini-jacks allows easy connection of any portable memory player for direct playback of music stored in it.
  • Detachable Faceplate

Key Features

Full Detachable Faceplate
14 Segment FL Display
50W x 4, 1RCA Pre-out
iPod Ready
MP3 & WMA Decoder

General Features

DIN Size1 DIN
Detachable FaceplateYes
Protection Case For FaceplateYes
Faceplate MechanismFull Detachable Faceplate
Angle AdjustmentNo
Key IlluminationSelectable: Red or Green
Rotary Encoder & Control KnobYes
Back-up Memory
Attenuator with Smooth Volume ReturnYes
Touch Sensor ToneYes
Digital Clock (24H)Yes
All-off Select (20/40/60 minutes)Yes
ISO connectorYes

Display Features

Display Type14 Segment FL Display
Display Layout14 segments x 8 Characters
Display IlluminationFluoricent Display
Spectrum Analyzer
Dimmer Control2 steps - Manual
Demo ModeYes
Special Character DisplayNo

Tuner Features

K3I - Clean Reception TunerYes
FM ReceptionYes
FM Stereo / Mono SelectorYes
AM (MW/LW) ReceptionYes
Tuning mode
Up/Down Seek/ScanYes
Presets24 Presets (18FM / 3LW / 3MW)
Automatic Memory Entry (AME)Yes
Radio Data SystemYes
Radio TextYes
Enhanced Other Networks Function (EON)Yes
Program Type Function (PTY)Yes

CD Features

CD-R/RW CompatibleYes
MP3 Playback with ID3 Tag DisplayYes
WMA (Windows Media Audio) PlaybackYes
CD Text SupportYes
SupremeYes
D.A.C. processing1 bit
Random Function
Repeat Function
Scan Function

USB Features

iPhone Features

Made for iPodYes
iPod control by 5L busYes, with optional KCA-iP500
Music playbackYes
Battery charge + power controlYes

External Media Control Features

Dual Changer Control (CH1, CH2 & AUX)Yes
CD Text Ready with Compatible KENWOOD UnitsYes
Disc & Track RepeatYes
Disc & Track ScanYes
Disc & Track Random PlayYes
Direct AccessYes

Audio Features

Maximum Output Power50W x 4
MOSFET Power ICYes
Auxiliary inputCA-C2AX, Adapter Cable, Included
Pre-out1 RCA
Pre-out Output Level2V
Source Tone Control & MemoryBass / Mid / Treble
Balance/Fader/Loudness ControlYes
Att.(-20dB) with smooth Volume ReturnYes
System Q (Preset Sound Control)Yes

Connectivity

Changer Control (5L-Bus)Yes
iPod I/F Control (5L-Bus)Yes
PS Amplifier Control System (5L-Bus)No
2-way (Tel/Navi) mute wireYes
OEM Wired Remote Control readyYes

Tuner Specifications

FM Frequency Range87.5MHz ~ 108MHz
FM Frequency Step50kHz
FM Usable Sensitivity0.7μV/75ohm (S/N 26dBf)
FM Quieting Sensitivity1.6μV/75ohm (S/N 46dBf)
FM Frequency Response30Hz ~ 15kHz (± 3dB)
FM Selectivity(DIN)over 80dB (±400kHz)
FM Stereo Separation (1kHz)35dB
MW Frequency Range531kHz ~ 1611kHz (9kHz step)
MW Frequency step9kHz
MW Usable Sensitivity25μV
LW Frequency Range153kHz ~ 281kHz (9kHz step)
LW Usable Sensitivity45μV

CD Specifications

Laser DiodeGaAIAs
Digital Filter(D/A)8 Times Over Sampling
Digital/Analogue Converter1 Bit
Spindle Speed1000 ~ 400rpm (CLV: 2 times)
Wow & FlutterBelow Measurable Limit
Frequency Response10Hz ~ 20kHz (±1dB)
Total Harmonic Distortion0.01% (1kHz)
Signal to Noise Ratio105dB (1kHz)
Dynamic Range93dB
MP3 DecoderCompliant with MPEG-1/2 Audio Layer-3
WMA DecoderCompliant with Windows Media Audio
AAC DecoderNo

Audio Specifications

Maximum Power50 W x 4
Output Power (DIN45324,+B=14.4v)30 W x 4
Preout Level2000 mV / 10 kOhm,
Preout Impedance≤ 600 Ohm
Speaker Impedance4 Ohm ~ 8 Ohm
Bass Tone Control100 Hz ±8 dB
Middle Tone Control1 kHz ±8 dB
Treble Tone Control10 kHz ±8 dB

General Specifications

Operating voltage14.4V (11 ~ 16V Allowable)
Maximum Current Consumption10A
Dimensions (WxHxD)182 x 53 x 155mm
Weight1400 gr.
