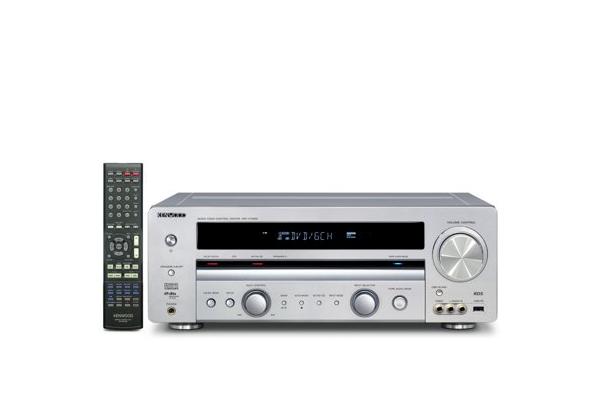

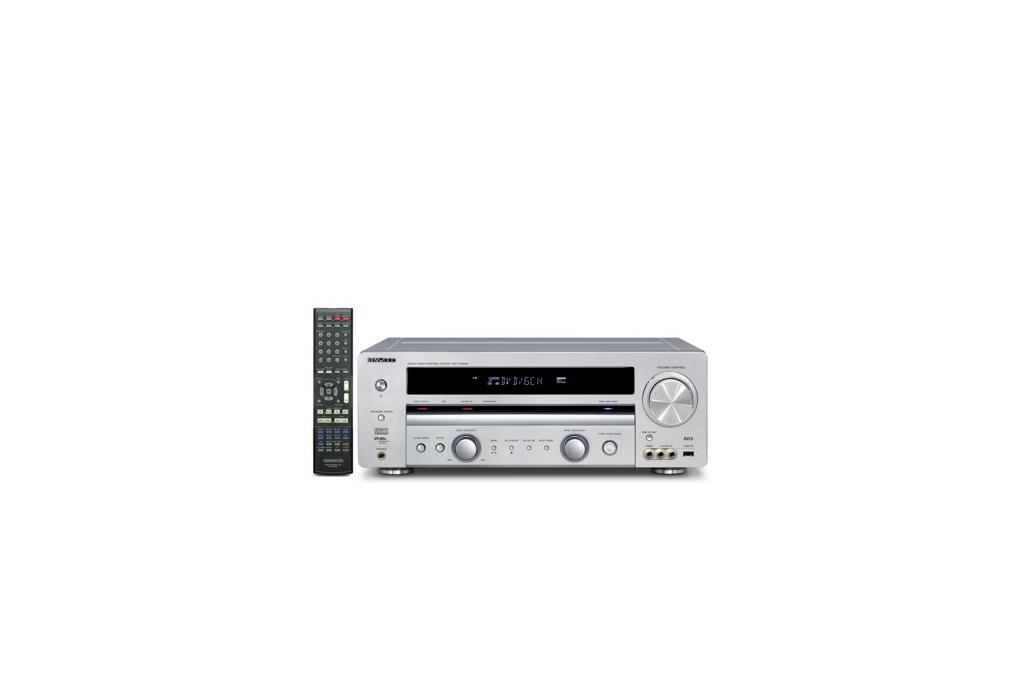

KRF-V7200D-S
7-channel AV Control Centre
Key Features
| Pure Audio Mode |
| USB Host Function |
| 7-Channel Amplifier |
| Easy Setup Function |
| Dolby Digital EX, DTS-ES |
| New Linear TRAIT |
Amplifier Features
| Maximum Surround Output Power | 7 x 120 Watt |
| Maximum Stereo Output Power | 2 x 120 Watt |
| New Linear TRAIT | Yes |
Tuner Features
| Tuner (AM/FM) | Yes |
| Radio Data System | Yes |
| Enhanced Other Network (EON) | Yes |
| Radio Text | Yes |
| Program Type (PTY) | Yes |
| Number of Presets (DAB) | 40 |
Surround Formats
| DTS-ES (Discrete 6.1) | Yes |
| DTS-ES (Matrix 6.1) | Yes |
| DTS Neo: 6 (Cinema/Music) | Yes |
| Dolby Digital EX | Yes |
| Dolby Digital EX 6.1 | Yes |
| Dolby Digital | Yes |
| Dolby Pro Logic IIx | Yes |
| Dolby Pro Logic IIx 7.1 | Yes |
| Dolby Pro Logic II | Yes |
| Dolby Pro Logic | Yes |
| DSP | 5 Modes |
| DSP Modes | Arena/Jazz Club/Theater/Stadium/Disco |
Audio Features
| D/A Converter | 24-Bit/96kHz |
| Midnight Mode for Dolby Digital/DTS | Yes |
| Active EQ | Yes |
| Tone Control | Bass/Treble |
General Features
| Easy Setup Function | Yes |
| Speaker A/B Selection | Yes |
| Display Dimmer | Yes |
| Full Auto Digital/Analogue Source Input Selector | Yes |
| Variable Input Sensitivity | 3 steps |
| Digital Recording Mode (Auto/Manual) | Yes |
| Metal Front Panel | Yes |
| Remote Control | System Remote with Kenwood DVD Control |
Digital Inputs/Outputs
| USB-A Terminal (USB Host) | Yes |
| Optical Audio Input/Output | 2 / - |
| Coaxial Audio Input/Output | 1 / - |
| Digital Input for 24-Bit/96kHz | Yes |
Analogue Inputs/Outputs
| RCA Audio/Video Inputs | 6 A / 3 V |
| RCA Audio/Video Outputs | 2 A / 2 V |
| HD-Component Video Inputs/Outputs | 3 / 1 |
| S-Video Inputs/Outputs | 2 / 1 |
| Composite Video Inputs/Outputs | 3 / 2 |
| RCA AV Front Input | Yes |
| 6-Channel Input for DVD-Audio/SACD | Yes |
| Pre-outputs | SW/SBL/SBR |
| Switched AC Accessory Outlets | Yes |
| Screw-type Speaker Terminals | Yes |
| Push-type Speaker Terminals | No |
| Headphone Jack (6.3 mm) | Yes |
| 75 Ohm FM Antenna Connector | Yes |
| AM Antenna Connector | Yes |
Audio Specifications
| Rated Stereo Output Power (FTC) | 2 x 100 Watt (63Hz ~ 12.5kHz, THD 0.7%, 6Ω) |
| Effective Stereo Output Power | 2 x 120 Watt (1kHz, THD 10%, 6Ω) |
| Effective Surround Output Power (THD 0.7%) | 5 x 100 Watt (1-ch driven, (1kHz, THD 0.7%, 6Ω) |
| Effective Surround Output Power (THD 10%) | 5 x 120 Watt (1-ch driven, (1kHz, THD 10%, 6Ω) |
| Surround Back Output Power | 2 x 100 Watt (1-ch driven, (1kHz, THD 0.7%, 6Ω) |
| Total Harmonic Distortion | 0.02% (1kHz, 50W, 6Ω) |
| Frequency Response Analogue Line Input | 20Hz ~ 80kHz, 0dB ~ -3dB |
| Signal/Noise ratio (IHF'66): Line input | 100dB |
| Input Sensitivity/Impedance: Line Input | 550mV (40kΩ) |
| Input Sensitivity/Impedance: AV AUX Input | 550mV (50kΩ) |
| Input Sensitivity/Impedance: 6-channel Input | 550mV / 27kΩ |
| Output Level/Impedance: Pre-output (Surround back) | 0.9V / 2.2kΩ |
| Output Level/Impedance: Subwoofer Pre-Output | 1.5V / 1.5kΩ |
| Output Level/Impedance: Rec Out | 550mV / 0.47kΩ |
| Tone Control (Bass) | ± 10dB (at 100Hz) |
| Tone Control (Treble) | ±10dB (at 10kHz) |
Video Specifications
| Input/Output Level: Composite | 1Vp-p (Impedance 75Ω) |
| Input/Output Level: S-Video (Y / C signal) | 1Vp-p / 0.286Vp-p (Impedance 75Ω) |
| Input/Output Level: Component (Y / Cb/Cr signal) | 1Vp-p / 0.7Vp-p (Impedance 75Ω) |
Digital Specifications
| Sampling Frequency | 32 / 44.1 / 48 / 96kHz |
| Input Level/Wave Length Optical | -15dBm ~ -21dBm, 660nm ±30nm |
| Input Level/Impedance Coaxial | 0.5Vp-p / 75Ω |
FM Tuner Specifications
| Tuning Frequency Range | 87.5MHz ~ 108MHz |
| Frequency Response | +0.5dB, -3dB (30Hz~15kHz) |
| Usable Sensitivity: Mono | 1.3µV / 13.2dBf (DIN, 75Ω, 40kHz dev., S/N 26dB) |
| Usable Sensitivity: Stereo | 45µV / 42.1dBf (DIN, 75Ω, 46kHz dev., S/N 46dB) |
| Total Harmonic Distortion: Mono | 0.2% (1kHz, 40kHz dev, 71.2dBf input) |
| Total Harmonic Distortion: Stereo | 0.8% (1kHz, 40kHz+6kHz dev, 71.2dBf input) |
| Signal/Noise ratio: Mono | 65dB (1kHz, 75kHz dev, 71.2dBf input) |
| Signal/Noise ratio: Stereo | 60dB (1kHz, 40+6kHz dev, 71.2dBf input) |
| Stereo Separation | 36dB (1kHz) |
| Selectivity | 64dB (±300kHz) |
AM Tuner Specifications
| Tuning Frequency Range | 531 ~ 1602kHz |
| Usable Sensitivity | 16 µV (30% mod. S/N 20dB, 600 µV/m ) |
| Signal/Noise ratio | 50dB (30% mod., 400Hz, 60dBµV) |
Power Specifications
| Power Consumption | 240 Watt |
| Stand-by Power Consumption (less than) | 0.6 Watt |
| AC Outlet (Switched) | 2 (Total 90W max) |
Dimensions & Weight
| Dimensions (WxHxD) | 440 x 159 x 345 mm |
| Weight (Net) | 9.6kg |
