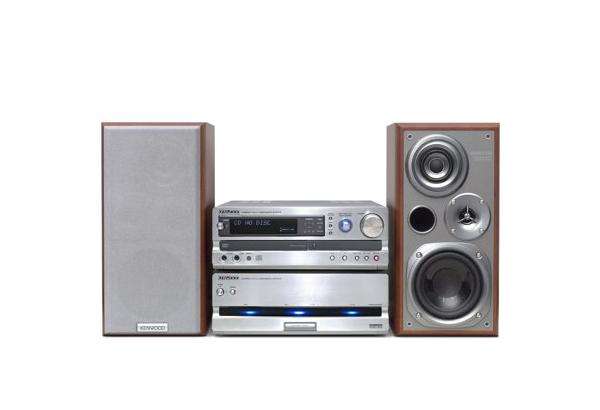

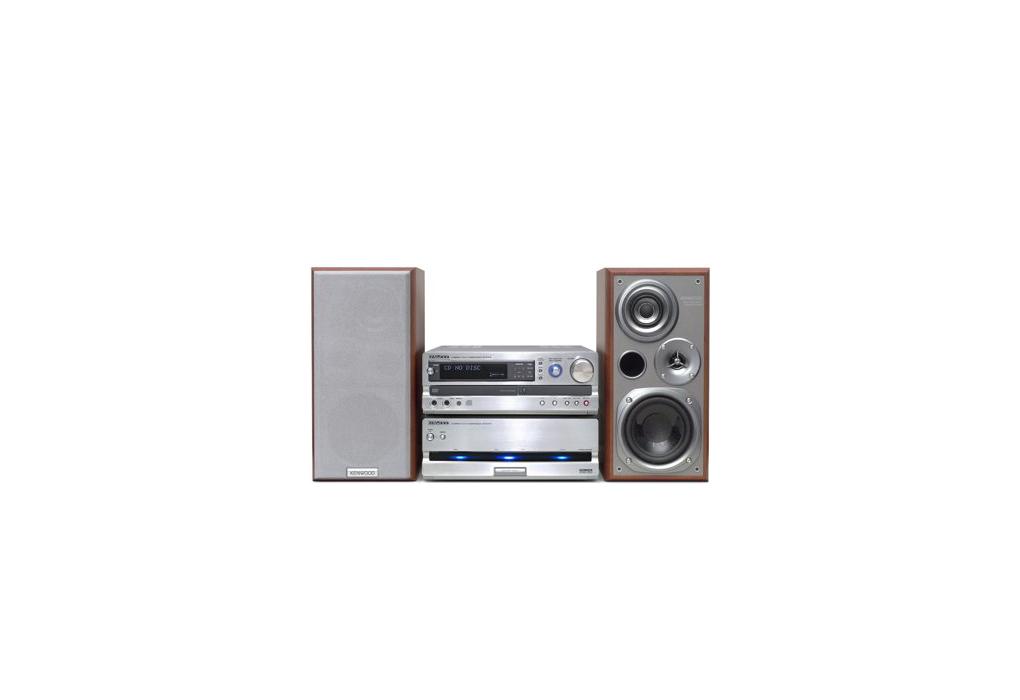

Key Features
2.0 virtual front surround sound; 2 Speakers, real surround! |
Discrete Power Amplifier and Full Digital Pre amplifier; High Quality Sound for Music (2channels) and Movie(4 channels) |
Autoroom EQ Modifying Function |
iPod compatible with the use of PAD-iP7 |
C-AX7
Key Features
Digital Pre-Amplifier |
Virtual Front Surround III |
Kenwood Auto Room EQ Technology |
DVD Video / DVDR/RW / VCD / MP3 / WMA / JPEG Playback |
Incl. SCART Euro connector adaptor |
General Features
Virtual Front Surround III | Music/Movie |
Clear Voice Sound | Music/Movie |
Width Control | Narrow/Wide |
Auto Room EQ | Yes |
Room EQ Mode | Normal / Wide / Night |
D/A Converter | 24-Bit 96/48kHz Wolfson |
Supreme | No |
Midnight Mode for Dolby Digital/DTS | Yes |
Parametric Equalizer | No |
Equalizer | 7-Band |
Tone Control | Yes, with Turnover Frequency Setting |
N.B. Circuit | No |
D-Bass | Music/Movie(0~10) |
X-bass / Bass Boost | No |
Loudness | No |
Tuner Features
Tuner (AM/FM) | Yes |
Program Type (PTY) | Yes |
Number of Presets (DAB) | 40 |
Timer | No |
Playable Media
PAL | Yes |
NTSC | Yes |
DVD-Video | Yes |
DVD-Audio | No |
DVD-R | Yes |
DVD-RW | Yes |
DVD+R | Yes |
DVD+RW | Yes |
CD DA / CD-R/RW | Yes |
SVCD | No |
VCD | Yes |
MP3 | Yes |
WMA | Yes |
OGG Vorbis | No |
FLAC | No |
Kenwood Lossless | No |
JPEG Digital Still | Yes |
Surround Formats
DTS 96/24 | No |
DTS-ES (Discrete 6.1) | No |
DTS-ES (Matrix 6.1) | No |
DTS Neo: 6 (Cinema/Music) | No |
Dolby Digital EX | No |
Dolby Digital | Yes |
Dolby Pro Logic IIx | No |
Dolby Pro Logic II | Yes |
Dolby Pro Logic | Yes |
Dolby Headphone | No |
Dolby Virtual Speaker | No |
Virtual Front Surround III | Yes |
DVD General Features
PAL Progressive Scan | No |
NTSC Progressive Scan | No |
NTSC Playback on PAL TV | Yes |
Video D/A Converter | 54MHz 10-bit |
Audio D/A Converter | 96/48kHz / 24-bit |
Multi-aspect TV Screen Mode | 4:3 / 16:9 |
Dolby Digital/DTS Bitstream Digital Output | Yes |
MPEG2 PCM Downmix Digital Output | No |
PCM Digital Output | Yes |
2-ch. Downmix Output for Multichannel Sound | Yes |
Selectable Camera Angle View | Yes |
Menu Languages | English, German, French, Italian, Spanish, Japanese, Chinese, Taiwanese |
Remote Control | Yes |
DVD Conveniences
Multimedia Operation (PC Data Playback) | No |
Multimedia Operation (Memory Card Playback) | No |
On-screen Display | Yes |
Parental Control | Yes |
Fast/Slow motion Playback | Yes |
Frame Forward/Backward & Freeze Frame | Yes |
Program Playback | Yes |
Repeat Playback | Chapter / Title / Track / All / A-B |
Random Playback | Yes |
CD Features
CD DA / CD-R/RW | Yes |
MP3 | Yes |
WMA | Yes |
CD Text | Yes |
Program Playback | Yes |
Repeat Playback | Track, Program, All |
Random Playback | Yes |
Digital Inputs/Outputs
USB-A Terminal (USB Host) | No |
USB-B Terminal (for streaming audio from PC) | No |
USB-B Mini Terminal | No |
Optical Audio Input/Output | - / 1 |
Optical Audio Front Input | No |
Analogue Inputs/Outputs
RCA Audio/Video Inputs | 4 Audio |
RCA Audio/Video Outputs | 1 Audio / 1 Video |
S-Video Output | Yes |
Composite Video Output | Yes |
Pre-outputs | Surround 1 / Surround 2 / Subwoofer / Center |
Switched AC Accessory Outlets | No |
Speaker A+B Terminals | No |
Headphone Jack (3.5 mm) | Yes |
Headphone Jack (6.3 mm) | No |
Headphone / Rec.Out Terminal (switchable) | Yes |
D.A.P. Link Terminal | analogue 3.5 mm |
75 Ohm FM Antenna Connector | Yes |
AM Antenna Connector | Yes |
Audio Specifications
Signal/Noise Ratio | 100dB |
Total Harmonic Distortion | 0.001% (CD, Tape/Video 1 Output) |
D-Bass Music Mode | +13dB (40Hz, Vol.60) |
D-Bass Movie Mode | +15dB (40Hz, Vol.60) |
Equalizer Frequencies | 63, 160, 400, 1000, 2500, 6300, 16000 |
Equalizer Variable Range | ±8dB |
Bass (Turnover 100Hz / 150Hz / 200Hz) | ±3.1 / 5.1 / 5.7dB (at 100Hz) |
Treble (Turnover 5kHz / 7kHz / 10kHz) | ±0 / 0 / 0dB (at 0kHz) |
Input Sensitivity/Impedance: Line | 700mV / 40kΩ |
Output Level/Impedance: Digital Audio Out | 1V / 32Ω |
Output Level/Impedance: Subwoofer Pre-Out | 0.6V / 600kΩ |
Digital Optical Output | -21 ~ -15dBm (Wave length 660nm) |
Tuner Specifications
FM Tuning Frequency Range | 87.5 ~ 108MHz |
AM Tuning Frequency Range | 531 ~ 1602kHz |
DVD General Specifications
Laser | Semiconductor Laser |
Tray Type | Single |
Video Format | PAL/NTSC |
DVD Video Specifications
Composite Video Output Level | 1Vp-p (75Ω) |
S-Video Output Level Y-signal | 1Vp-p (75Ω) |
S-Video Output Level C-signal | 1Vp-p (75Ω) |
Power Specifications
Power Consumption | 46 Watt |
Stand-by Power Consumption (less than) | 0.45 Watt |
Dimensions & Weight
Dimensions (WxHxD) | 270 x 101 x 347 mm |
Weight (Net) | 4.3kg |
M-AX7
Key Features
Switchable 4ch./2ch. BTL Power Amplifier |
Discrete Power Amplifier topology |
2-channel configuration: 2 x 50 Watt |
4-channel configuration: 4 x 25 Watt |
2 Analogue Audio Inputs (Front - Surround) |
Amplifier Features
Maximum Surround Output Power | 4 x 25 Watt |
Maximum Stereo Output Power | 2 x 50 Watt |
Digital Pre Amplifier | Yes |
BTL (Bridge Tied Load) Amplifier | Yes |
Linear T.R.A.I.T. | No |
Advanced Ground Line | Yes |
Audio Specifications
Effective Output Power | 2 x 50 Watt (1kHz, THD 10%, 6Ω) |
Effective Output Power (Surround) | 4 x 25 Watt (1kHz, THD 10%, 6Ω) |
Signal/Noise Ratio | 105dB |
Signal/Noise Ratio (Surround) | 100dB |
Total Harmonic Distortion | 0.0025% (1kHz, 19W, 6Ω) |
Total Harmonic Distortion (Surround) | 0.003% (1kHz, 10W, 6Ω) |
Power Specifications
Power Consumption | 130 Watt |
Stand-by Power Consumption (less than) | 0.25 Watt |
Dimensions & Weight
Dimensions (WxHxD) | 270 x 101 x 336 mm |
Weight (Net) | 5kg |
LS-AXD7
Key Features
2-way Speaker System with Built-in Satellite Speakers |
Speakers
Type | Bookshelf |
Configuration | 2-way 2-speaker System with Built-in Full Range Effect Speaker |
Built-in Surround/Effect Speaker | Yes |
Bi-Wiring | No |
Push-type Terminals | Yes |
Magnetically Shielded | Yes |
Grill | Detachable |
Speaker Specifications
Peak Input Power | 50 Watt |
Frequency Response | 45Hz ~ 20kHz |
Frequency Response Effect Speaker | 140Hz ~ 20kHz |
Impedance | 6Ω |
Sensitivity | 85dB/W at 1m |
Sensitivity Effect Speaker | 81dB/W at 1m |
Tweeter | 25 mm (1") Balanced Dome type |
Woofer | 120 mm (4-3/4") Cone type |
Effect Speaker | 50 mm (2") Cone type |
Dimensions & Weight
Dimensions (WxHxD) | 164 x 330 x 211 mm |
Weight (Net) | 3.9kg |
